Bqg-fb -‖ type (double beam) explosion-proof lifting weight limiter
Product introduction
BQG - FB - type I series explosion-proof lifting weight limit is used to all kinds of explosion-proof type hoisting equipment, the product by the side pressure type tension sensor, riot cavity, explosion-proof junction box and display instrument of four parts, including explosion-proof box adopts cylinder flame-proof structure, can withstand the internal explosion pressure of explosive gas mixture, and can prevent the spread of internal explosion mixture, both sensors associated components such as the display instrument circuit through the lock nut connection, make the whole system can achieve lots c-class explosion-proof requirements.

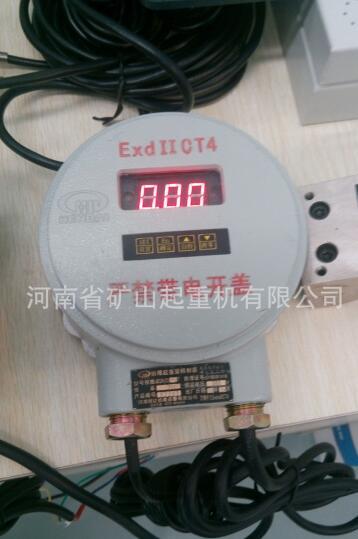

Product pictures
Technical indicators:
1. Ambient temperature: -20℃ ~ +60℃
Ambient humidity: 90%RH
2. Power supply voltage: 36VAC ±15% 50 HZ
3. Display error ≤±3%
4. Comprehensive error ≤±5%
5. Set alarm points
(1) alarm point: 90% of the rated lifting weight shall not cut off the power supply of the lifting loop;
(2) delay alarm point: 105% of rated lifting weight, delay 1-2 seconds to cut off the power supply of lifting circuit;
(3) immediate alarm point: 130% of rated starting weight.
6. Sensor overload capacity :1.5 times.
7. Contact capacity of control relay: 220V, 15A
8. Explosion protection grade.
(1) critical electric control box, explosion-proof level: d (ia) Ⅱ CT4; Protection grade: IP54.
(2) meter box of explosion-proof level: ia Ⅱ CT4; Protection grade: IP42.
(3) sensor explosion-proof level: ia Ⅱ CT4; Protection grade: IP65.
The limiter is divided into two forms, including digital display and no digital display, for users to choose, but all have overload alarm function
Custom instructions
1. Due to a wide variety of lifting equipment and accessories, the quotation of products on this website is for reference, please contact with the business for details.
2. Since the lifting equipment is customized, please provide tonnage and lifting height for inquiry and order.
3. For other special requirements, please note or contact the merchant.
Quality assurance, delivery, after-sales service and others:
Quality: according to the international standard, the material is pure enough, and the whole process is guaranteed.
Delivery: the standard packaging is carton packaging, generally choose large logistics companies, sometimes due to logistics transport reasons to use other packaging. Or by a van.
Warranty: our products are guaranteed for one year.
After-sales service: if there is any quality problem within the warranty period, the company will implement "three guarantees" service in accordance with the provisions. Provide free technical consultation and guidance on equipment commissioning and product-related issues according to customer requirements. Due to improper use of the product quality problems caused by the user, the company's discretion to charge, to ensure customer satisfaction.
Accessories supply: to provide the original factory accessories at a preferential price.
